Pedestrian Gangway

Aluminium Pedestrian Gangways, available up to 6m in length with foldable and removable handrails.

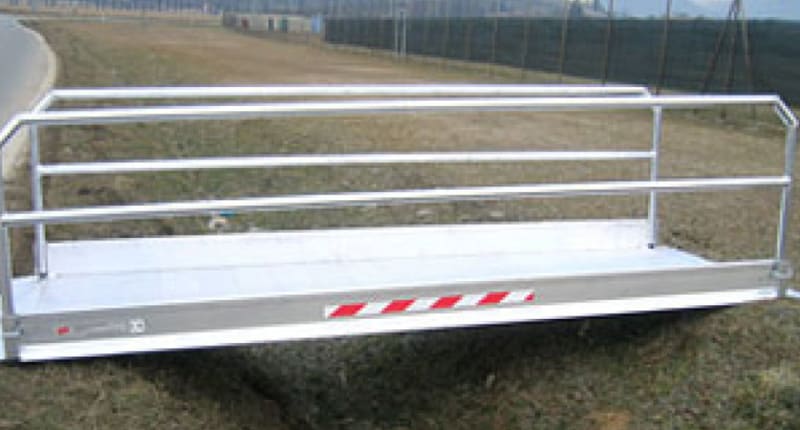

Groundforce's range of aluminium pedestrian walkways are designed for pedestrian use across excavations and ditches. They have a maximum loading capacity of 400kgs/m2 and range from 1660mm - 6060mm long.

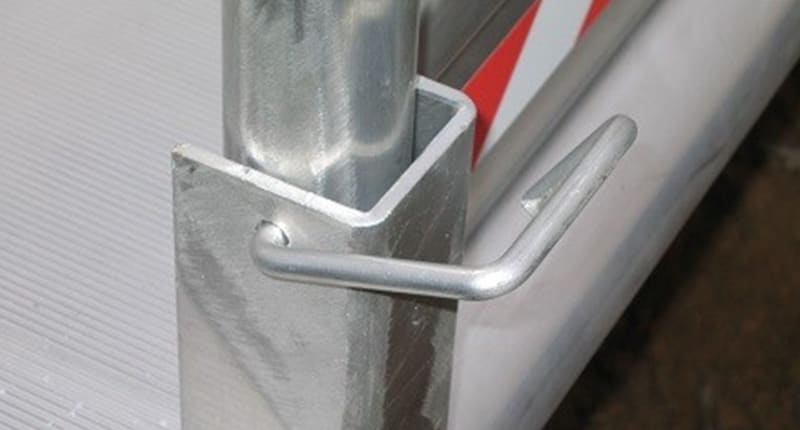

The handrails on the sides of the walkways are 1000mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely. The footstops are 200mm high.



Please note that the ramp should never be used at more than a maximum gradient of 5%. On both sides of the ramp there must also be a minimum rest of 330mm.

Benefits & Features:

• Rest on connections - simply put ramp in place and start using it
• Foldable edges to reduce ramp size during transportation
• 200mm high footstops
• Ergonomic handrails 1m high
