Piling Hammer (EMV)
What is a Piling Hammer?

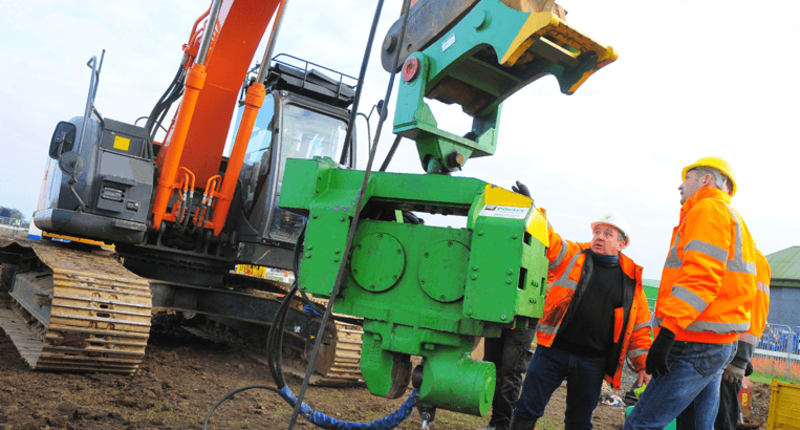

Piling Hammers (EMVs) are specifically designed as a sheet piling attachment for excavators. They have a high power to weight ratio due to the high operating frequency and can apply an additional vertical force from the excavator to assist driving if required.
What can a Piling Hammer be used for?
This type of excavator mounted sheet pile driver is ideally suited to cohesive, granular soil conditions and can significantly decrease driving time, reduce noise and minimise potentially hazardous vibrations.
What are the benefits of Piling Hammers?
A key benefit of choosing the Piletec excavator mounted sheet pile driver is the option to mount it via the VibroSafe Quick Hitch Adaptor. This purpose designed adaptor enables the piling hammer to be used with a fully automatic quick hitch coupler; a key safety feature as no operator intervention is necessary. Of course, the EMV may also be mounted via a bracket directly to the dipper arm in the traditional way.
The EMV is of a slim design to enable it to drive between adjacent upstanding piles. If required however, the clamp can be removed and refitted at 90 degrees enabling piling to be carried out close to an existing structure.
In special circumstances, this range of excavator pile driver attachment can easily be operated from a Piletec Powerpack.
Specification
Swipe table to view cut off content
|
|
MS1 HFB |
MS3 HFB |
MS4 HFB |
| Weight (kg) |
350 |
830 |
1230 |
| Max. centrifugal force (kN) |
90 |
296 |
374 |
| Eccentric moment (kgm) |
0.7 |
3 |
4.2 |
| Max. oil flow (l/min) |
102 |
120 |
171 |
| Max. working pressure (bar) |
300 |
300 |
300 |
Swipe table to view cut off content
| Model |
230M (B) |
328M (B) |
428M (B) |
625M (B) |
823b |
| Eccentric moment (kgm) |
2.2 |
3.2 |
4 |
6 |
8 |
| Max. centrifugal force (kN) |
220 |
275 |
345 |
410 |
464 |
| Max. frequency (rpm) |
3000 |
2800 |
2800 |
2300 (2500) |
2300 |
| Max. amplitude incl. univ clamp (mm) |
7 (6) |
9.5 (8.5) |
10 (9) |
14.5 (13) |
19.1 |
| Weights |
| Dynamic weight incl. univ clamp (kg) |
640 (720) |
660 (740) |
795 (900) |
825 (930) |
940 |
| Total weight incl. univ clamp (kg) |
875 (1080) |
885 (1090) |
1065 (1280) |
1095 (1300) |
1310 |
| Dimensions (See Drawing) |
|
|
|
|
|
| Height A Excluding bracket (mm) |
1095 (1320) |
1095 (1320) |
1145 (1388) |
1145 (1388) |
1115 |
| Width B (mm) |
575 (530) |
575 (530) |
710 (612) |
710 (612) |
612 |
| Length C (mm) |
1230 (1115) |
1230 (1115) |
1300 (1115) |
1300 (1115) |
1003 |
| Depth D (mm) |
258 |
258 |
300 |
300 |
385 |
| Power Pack |
ICE 100 |
ICE 100 |
ICE 180RF |
ICE 180RF |
ICE 330RF |
How to hire a Piling Hammer from Piletec?
For more information on Piling Hammers (EMVs) and piling equipment hire, simply follow our Contact Us link or ‘Add to Enquiry Basket’ to find out what’s on offer, or send for a product brochure.
