MP375

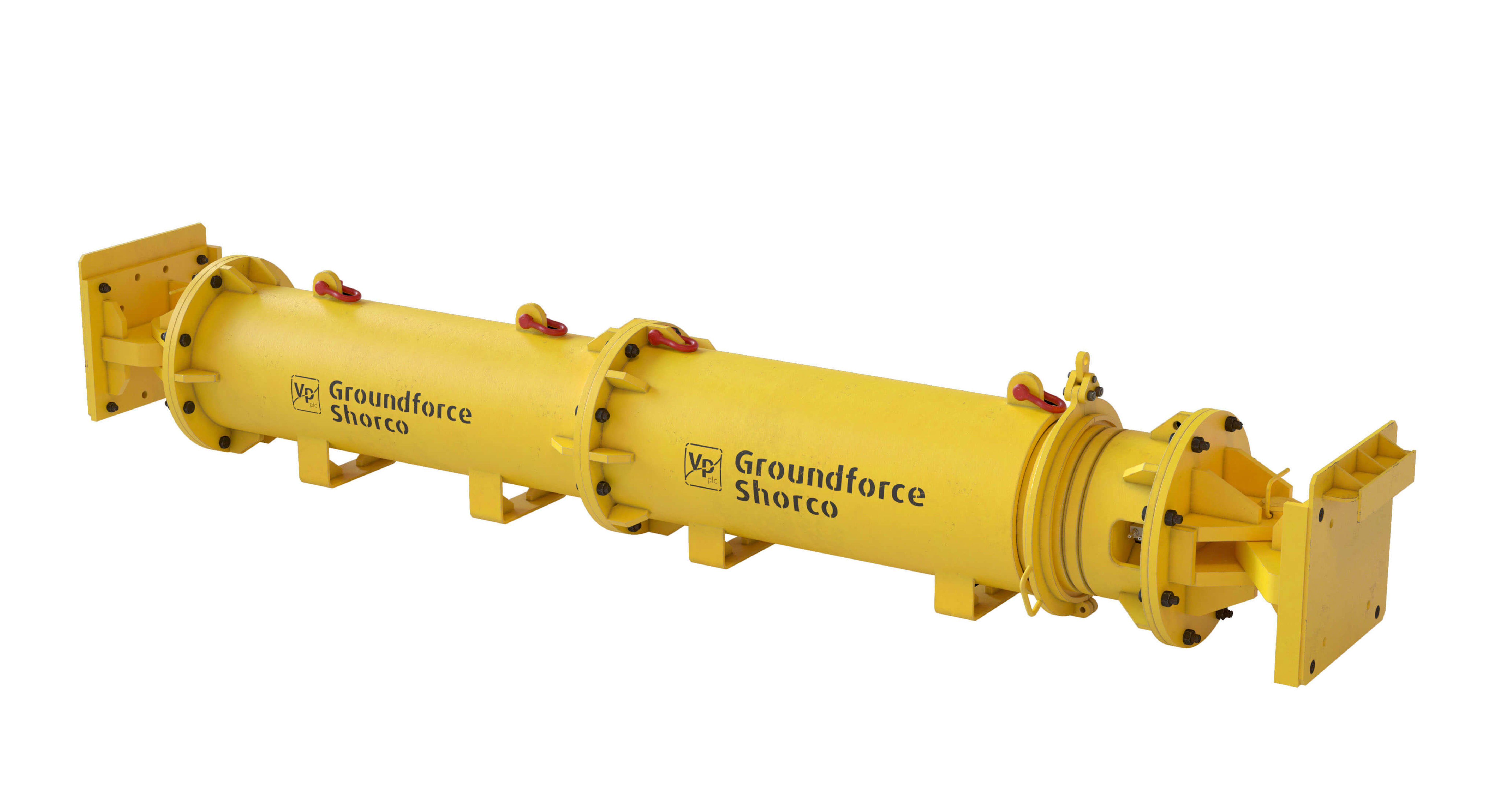

The MP375 is a modular format heavy-duty hydraulically activated strut consisting of a hydraulic ram unit with a 1300mm stroke for fine length adjustment. For higher load and/or longer span applications, it is possible to combine the hydraulic unit with extension pieces using appropriate adaptor components. Swivel end bearing units allow for various strutting alignments within an excavation with or without waling beams.

Add to Basket

Added to Enquiry Basket

The MP375 has a practical operating range of 3.1m to 24.0m and can withstand working loads up to 375 tonnes at shorter spans. The hydraulic extension and retraction of the ram is made using a hand operated or motorised pump with two hoses connected to the ram via quick release couplings located to one side of the hydraulic unit.

Description	Weight (kg)	Ancillaries	Weight (kg)
MP375 Hydraulic Strut Unit	3270	MP250 Euro to Std Adaptor	850
MP250 Hyd Strut Extn 0.5m	250	MP375 Bolted Flange Swivel Plate	250
MP250 Hyd Strut Extn 0.5m (HD)	300	MP375 End Bearing Plate	260
MP250 Hyd Strut Extn 1.0m	380	MP250 Super to Euro Adaptor	1120
MP250 Hyd Strut Extn 2.0m	570	MP250 Super to Std Adaptor (HD)	950
MP250 Hyd Strut Extn 4.0m	945	MP375 Load Pin	36
MP250 Hyd Strut Extn 8.0m	1720	MMP250 Universal Cleat	20
MP250 Hyd Strut Extn 12.0m

FAQs

Related Files

(4.77 MB)

MP375 Hydraulic Strut

(19.94 MB)

MP375

Related Products

MP750 Hydraulic Strut

The MP750 is a high load capacity strut and is capable of resisting design loads up to 11,000kN. The strut consists of a central low pressure hydraulic ram unit with a 500mm stroke for fine length adjustment on site. Once installed, load is resisted by a twin screw mechanical locking system. The unit also incorporates an advanced high pressure hydraulic nut system to aid installation, high level pre-stressing (if required) and subsequent removal of the strut under residual load.

MP250 Hydraulic Strut

The MP250 is a modular format high load capacity hydraulic strut combining the compressive strength of steel tube with the convenience of hydraulic actuation for length adjustment and pre-loading potential. Swivel end bearing units allow for various strutting alignments within an excavation, with or without waling beams.

MP250 Hydraulic Strut (Super Extensions)

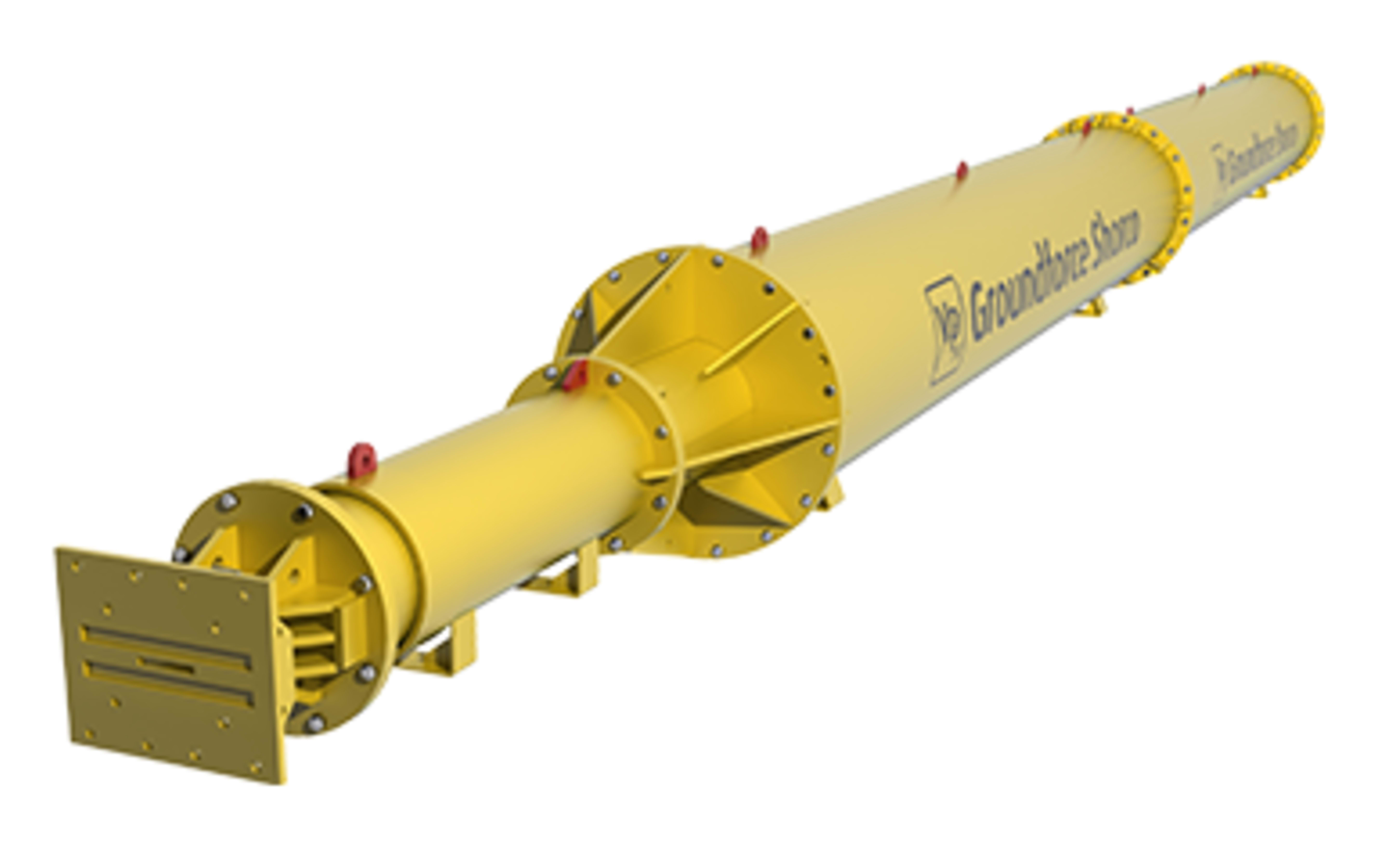

The MP250 is a modular format heavy-duty hydraulically activated strut consisting of a hydraulic ram unit with a 1050mm stroke for fine length adjustment. For higher load and/or longer span applications, it is possible to combine the hydraulic unit with extension pieces using appropriate adaptor pieces. Swivel end bearing units allow for various strutting alignments within an excavation with or without waling beams.
