Premier LadderSafe

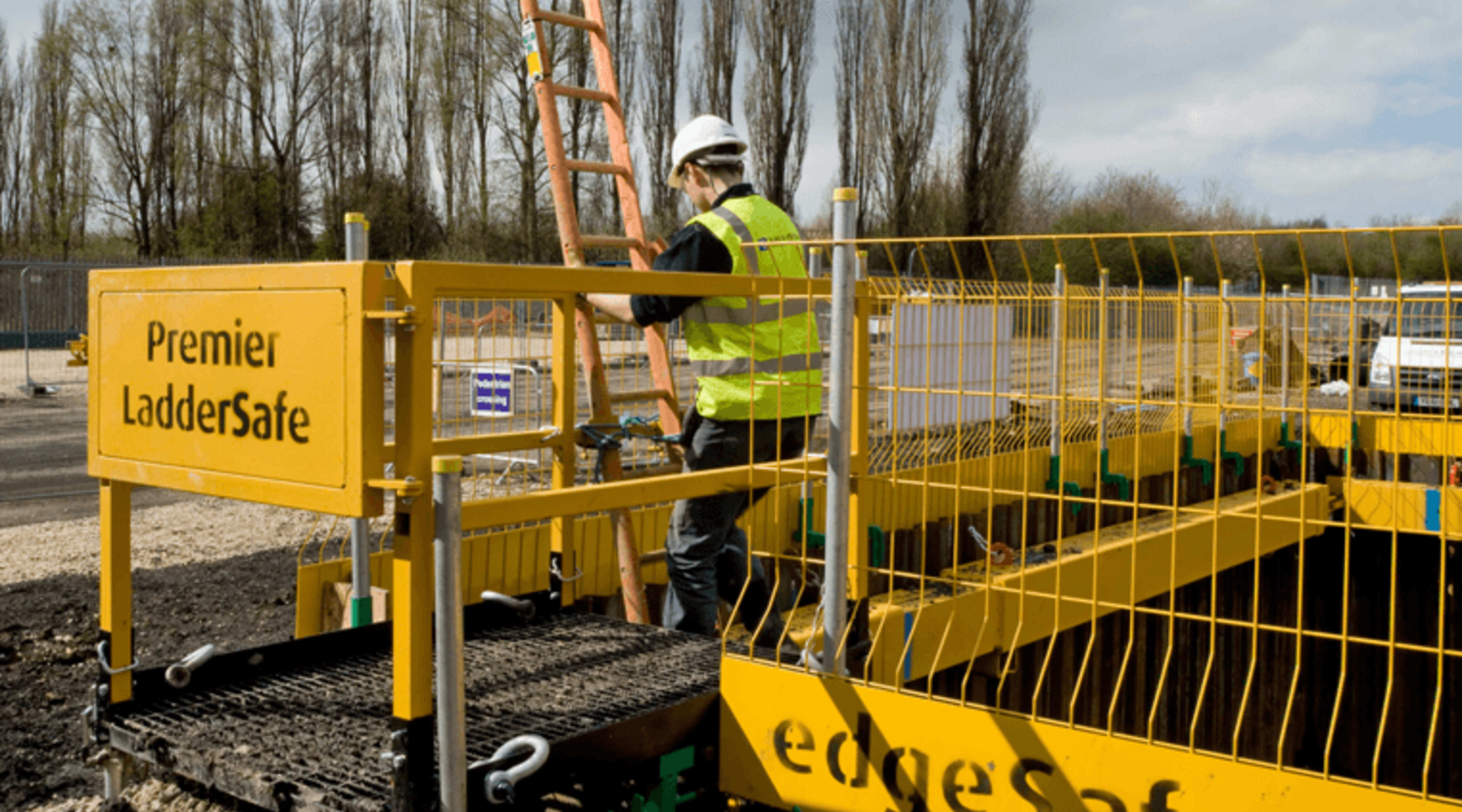

Premier LadderSafe is a heavy duty, temporary, gated access platform which uses a conventional ladder to allow access or egress for medium-depth excavations typically up to 6m deep. Pole ladders are supplied separately.

Includes all features of Mega LadderSafe except utilises standard pole ladders as a means of access instead of a fixed steel ladder
Heavy duty platform entry system
Maximum recommended depth 6m
Ideal for use with sheeted excavations
Combines with StepSafe or ladders

Add to Basket

Added to Enquiry Basket

The function of the unit is to control access at a fixed point on the excavation perimeter. The system can be fitted on most trench sheets, steel piles, trench box panels and solid structures up to 220mm wide and would normally be used in conjunction with a barrier system such as the Groundforce EdgeSafe system.

Code	Description	Size (m)	Quantity	Weight (kg)
PLS.PU	Premier LadderSafe Platform	1.5 x 1.12	1	160
PLS.C*	Premier LadderSafe 10” Clamp (clamping range 15-265mm)	-	2	2.5
PLS.WC*	Premier LadderSafe Wall Clamp (clamping range 150-350mm)	-	2	7

FAQs

Related Files

(2.27 MB)

Premier LadderSafe Platform User Guide

LadderSafe: Typical Installation Methodology

This sequence explains the various equipment available to provide safe access to an excavation. The products include: Maxi LadderSafe, Mini LadderSafe, Mega LadderSafe, Premier LadderSafe, StepSafe

Enquire Now
