Steel Waler System

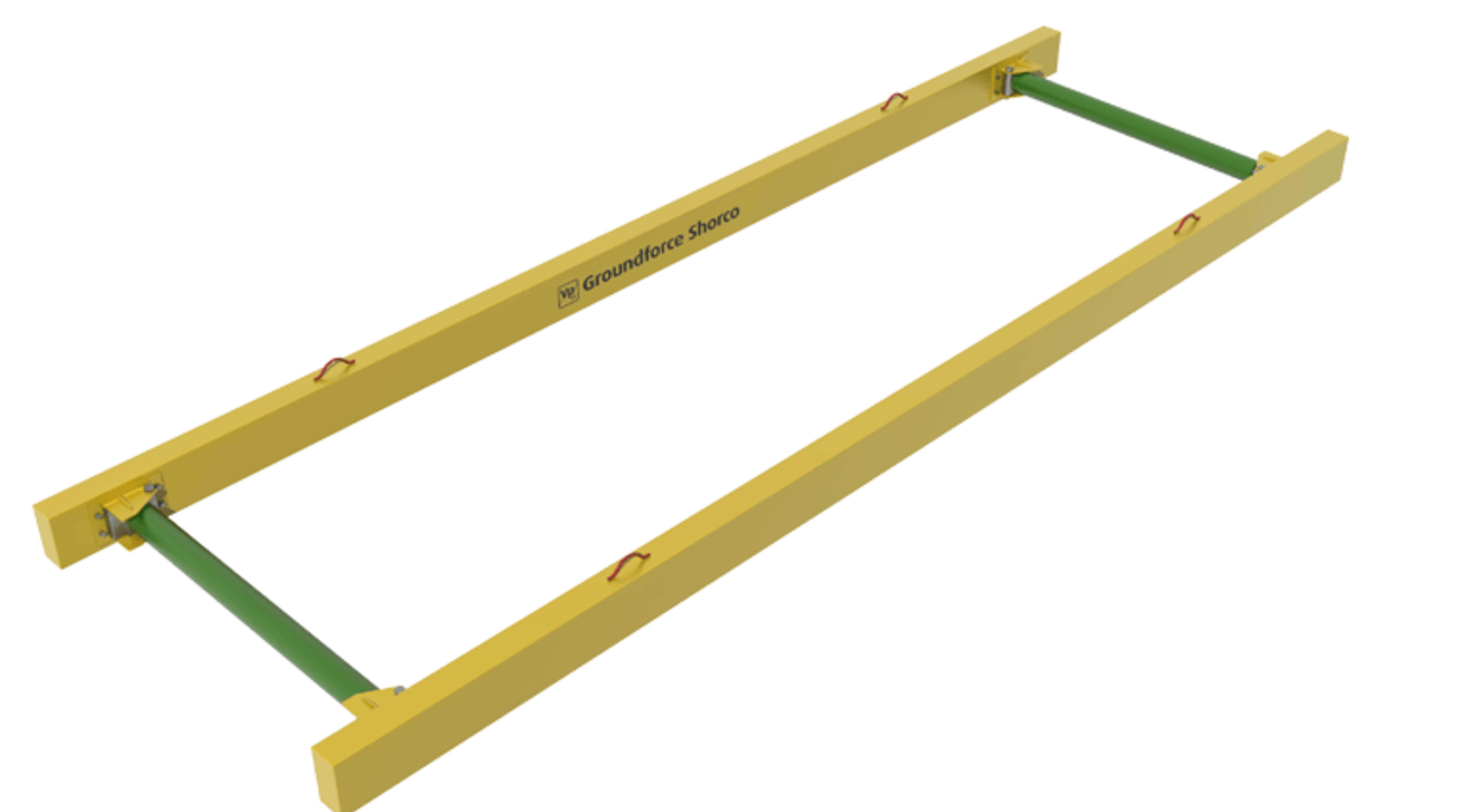

A heavy duty steel waler system where stronger support is required. Each unit comprises 2 No. steel rails complete with two hydraulic cylinders. These are available in a range of different sizes depending on the trench width. The cylinders fit directly on to the rails and are pressurised by a manually operated hydraulic hand pump, giving an uninterrupted column of strength between the trench walls.

A heavy duty system where stronger support is required
Continuous or partial support in trenches
Hydraulic cylinders allow variable trench width adjustment
Ideal for use where services and utilities exist

Add to Basket

Added to Enquiry Basket

All units are designed for quick and easy assembly, installation and extraction by one or two people from outside the trench. All units are fitted with mechanical lock-off valves for additional security and to further simplify the installation and extraction process. If the non-battered ends of the excavation require additional support, aluminium Waler End Bearers can be used to provide light weight support.

Steel Waler Rails

Technical Specification	Hydraulic Cylinder Type
	A	B	C	C1	C2	C3
5.0m Steel Walers
Weight of Complete Frame (kg)	454	458	462	468	470	472
Minimum Sheet to Sheet (mm)	750	1000	1500	2100	2700	3300
Maximum Sheet to Sheet (mm)	1050	1500	2400	3000	3600	420

Heavy Duty Steel Waler Rails

Technical Specification	Hydraulic Cylinder Type
	A	B	C	C1	C2	C3
3.9m Heavy Duty Steel Walers
Weight of Complete Frame (kg)	307	311	315	321	323	325
5.0m Heavy Duty Steel Walers
Weight of Complete Frame (kg)	338	392	369	402	404	406
5.0m Super Heavy Duty Walers
Weight of Complete Frame (kg)	558	562	566	572	574	576
Minimum Sheet to Sheet (mm)	850	1100	1600	2200	2800	3400
Maximum Sheet to Sheet (mm)	1150	1600	2500	4	3400	4000

Equipment

Cylinder Type	Operating Range (MM)
A Type	529.5	831.7
B Type	784.5	1286.6
C Type	1284.5	2182.7
C1 Type	1882.7	2780.8
C2 Type	2482.7	3380.8
C3 Type	3082.7	3980.8

FAQs

Related Files

(7.88 MB)

Walers Technical Literature

(4.29 MB)

Hydraulic Waler Frames User Guide

(2.11 MB)

Quick Start User Guide for Waler Frames

(3.86 MB)

Frames Walers Braces

Hydraulic Waler Frames: Typical Installation Methodology

Waler frames provide 2-way support to trenches and are used in conjunction with trench sheeting. Each unit comprises 2 No. aluminium or steel rails strutted apart by two hydraulic cylinders. The latter are available in a range of different sizes depending on the trench width. This sequence explains the method for installing a Hydraulic Waler System, complete with optional End Bearers within a trench.
