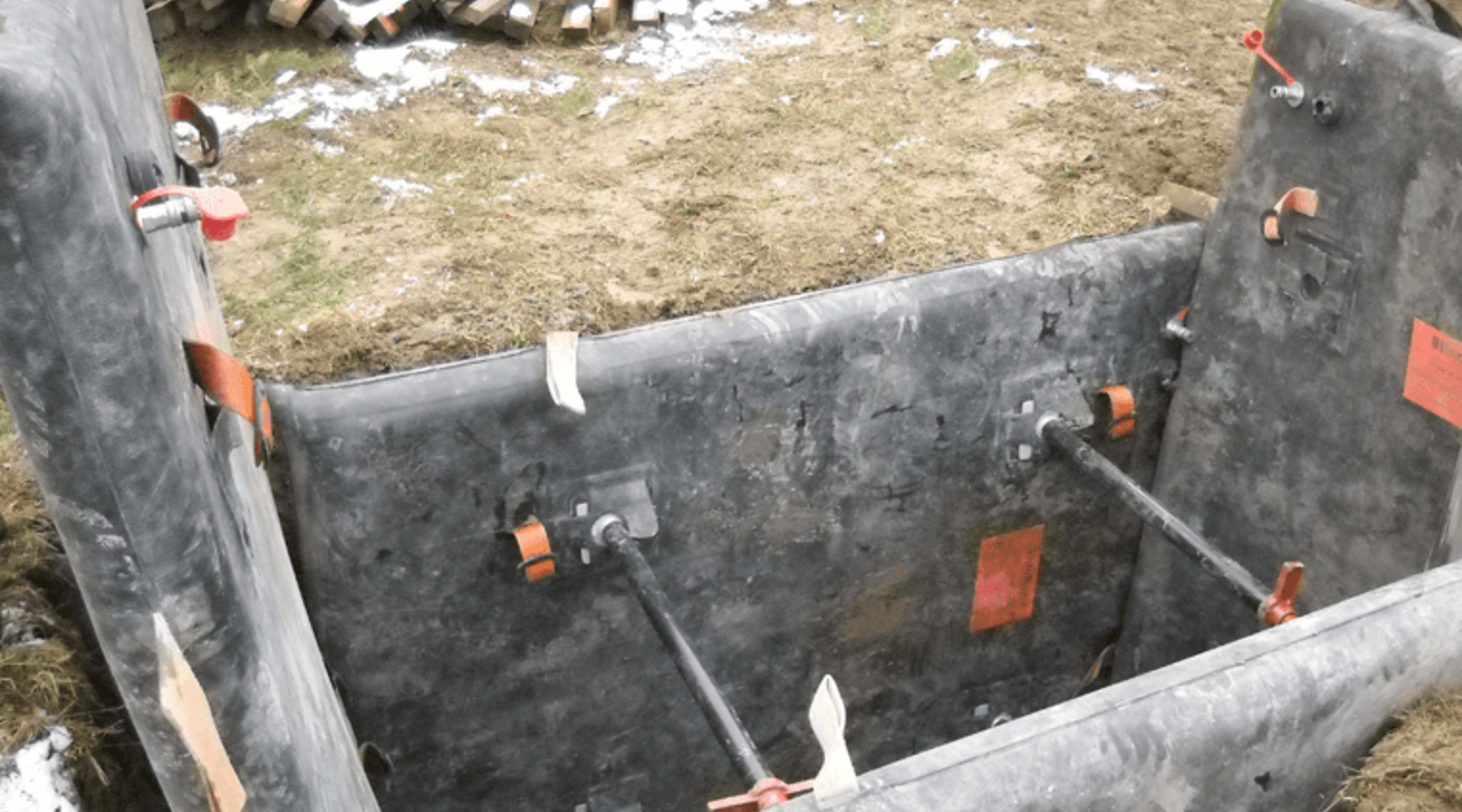

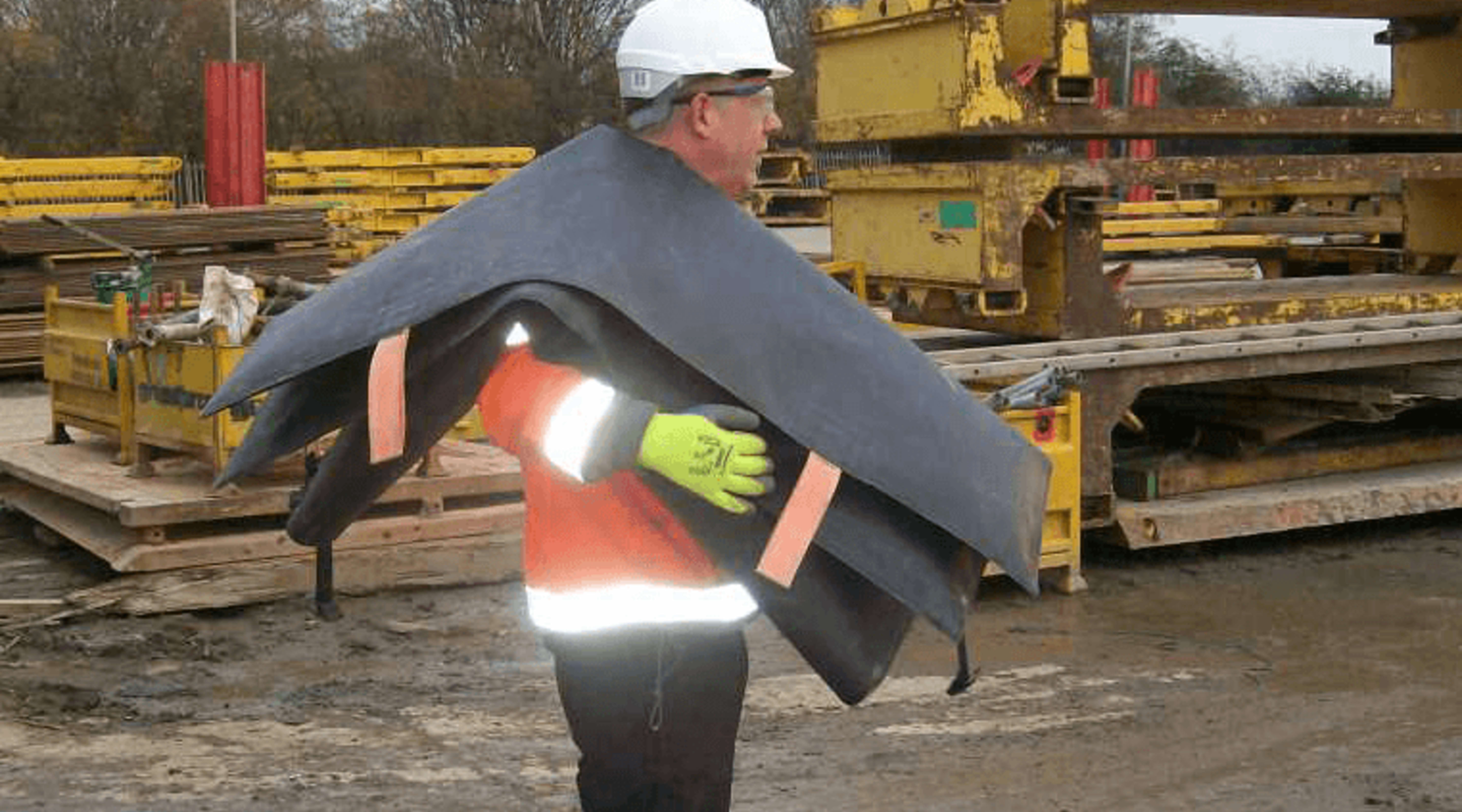

The cushions are inflated to an operating pressure of 0.65 bar (9.5 psi) using a standard site compressor and the pressure is regulated by a built-in safety valve in the cushion. Deflation utilises compressed air to completely expel the air using a Venturi Valve connected in line with the inflation hose for compact transportation and storage.

  Dimensions Inflation Pressure (psi) Weight Working Panel Pressure Safe Axial Load Capacity**
Inflatable Cushion 2150x1380
x135*		 0.65 Bar (9.45) 13 kg 15 kN/m2 -
Adjustable Strut 80/100 800-1100 - 5 kg - 29kN
Adjustable Strut 110/140 1100-1400 - 7 kg - 23kN

*fully inflated
**fully extended

FAQs

Related Files

(1.41 MB)
Smartshore User Guide

SMARTSHORE® Inflatable Shoring System Video

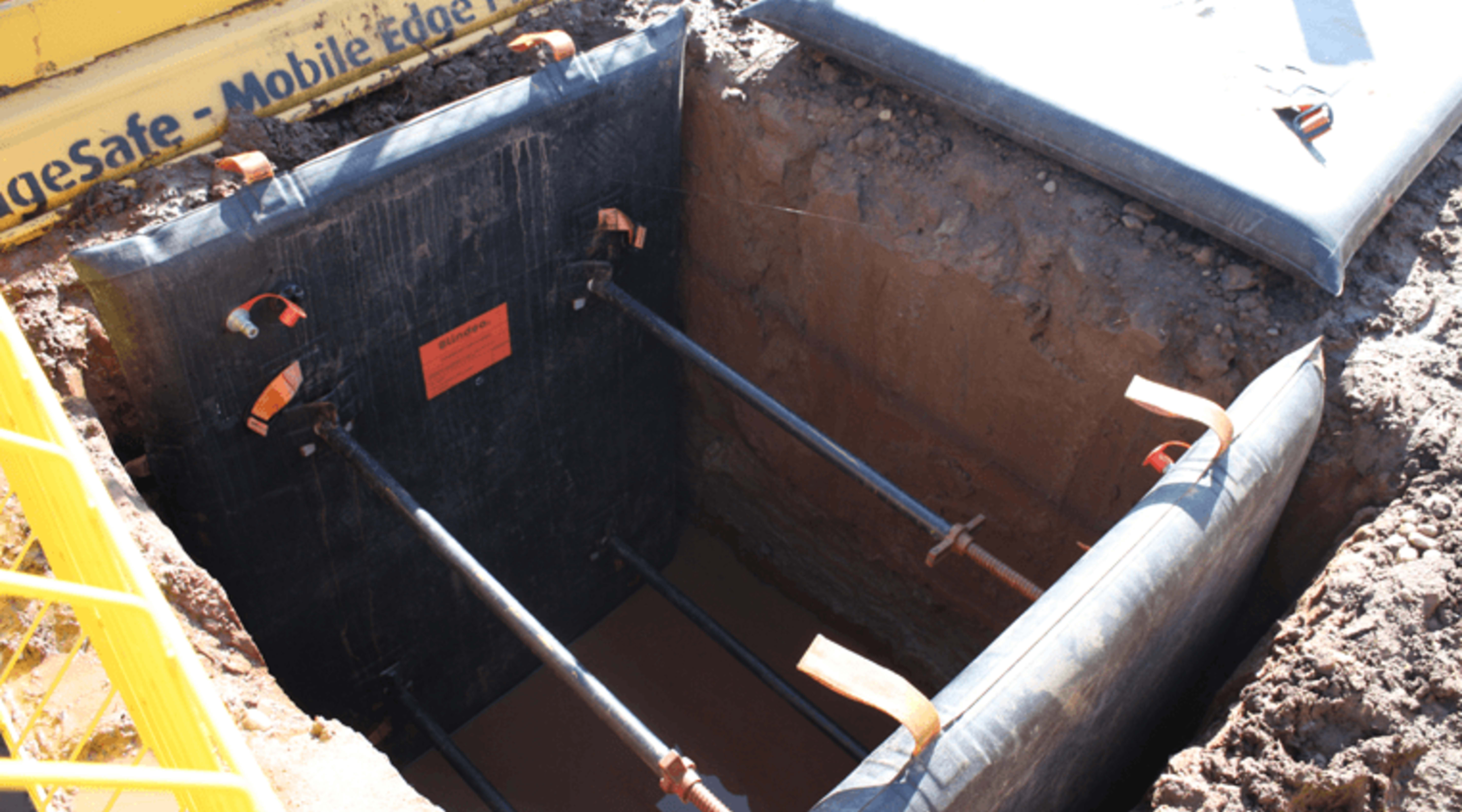

Installation video for the inflatable shoring system that can be put in place in under 20 minutes with no lifting equipment necessary. Safely and quickly brace small trenches to prevent cave in.
