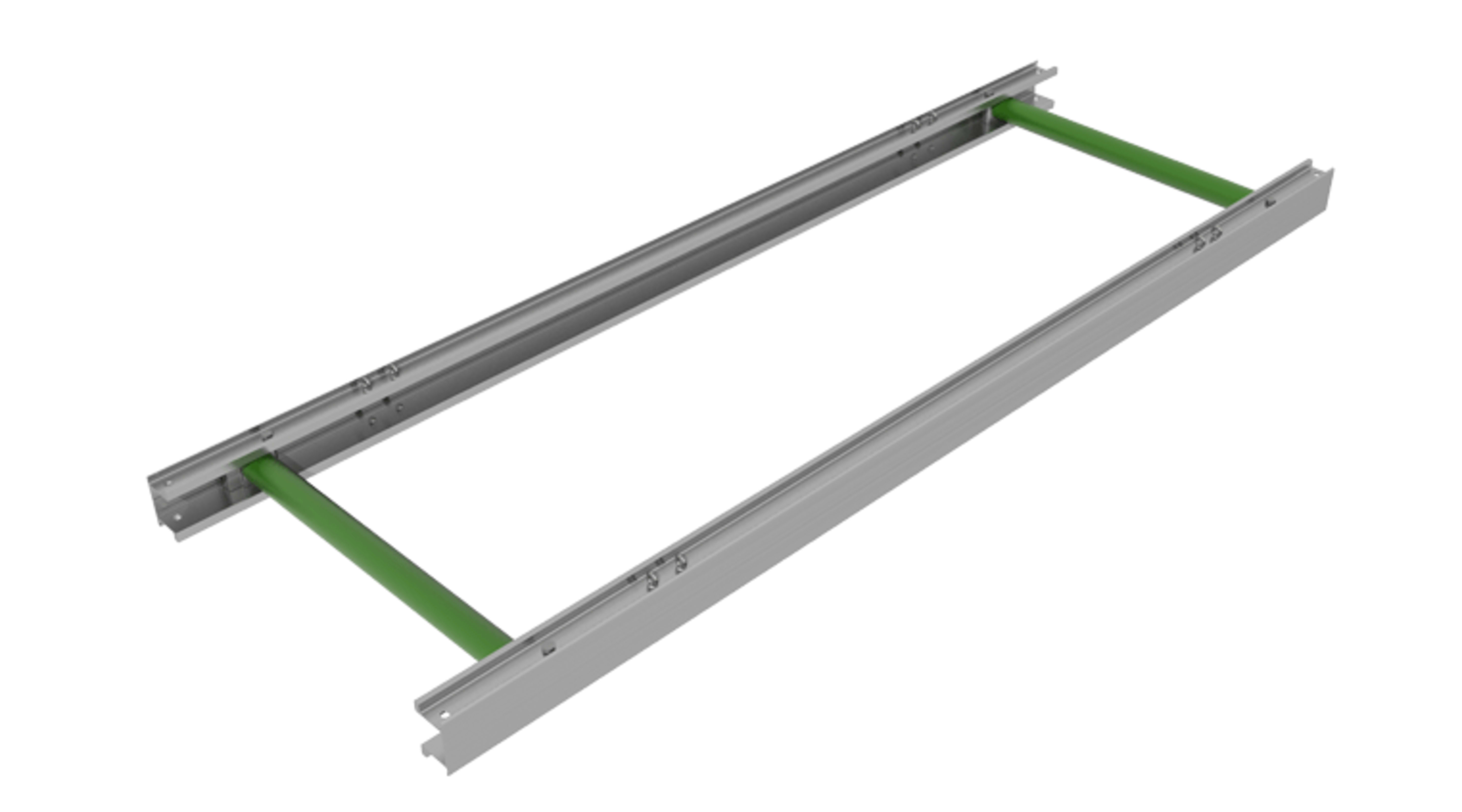

Waler Frames provide two way support to trenches and are used in conjunction with trench sheeting. Various specifications of Waler Frames are available varying from lightweight aluminium to super heavy duty steel rails.

    Each unit comprises 2 No. aluminium or steel rails complete with two hydraulic cylinders. The cylinders fit directly on to the rails and are pressurised by a manually operated hydraulic hand pump, giving an uninterrupted column of strength between the trench walls. All units are designed for quick and easy assembly, installation and extraction by one or two people from outside the trench. All units are fitted with mechanical lock-off valves for additional security and to further simplify the installation and extraction process.

Cylinder Type Operating Range (MM)
A Type 529.5 831.7
B Type 784.5 1286.6
C Type 1284.5 2182.7
C1 Type 1882.7 2780.8
C2 Type 2482.7 3380.8
C3 Type 3082.7 3980.8



Aluminium Waler Rails

Technical Specification Hydraulic Cylinder Type
  A B C C1 C2 C3
2.0m Aluminium Walers
Weight of Complete Frame (kg) 60 63 66 70 72 74
3.0m Aluminium Walers
Weight of Complete Frame (kg) 90 94 98 104 106 108
4.0m Aluminium Walers
Weight of Complete Frame (kg) 114 118 122 128 130 132
5.0m Aluminium Walers
Weight of Complete Frame (kg) 122 128 136 172 188 204
Minimum Sheet to Sheet (mm) 550 800 1300 1900 2500 3100
Maximum Sheet to Sheet (mm) 850 1300 2200 2800 3400 4000

FAQs

Related Files

(7.88 MB)
Walers Technical Literature
(4.29 MB)
Hydraulic Waler Frames User Guide
(2.11 MB)
Quick Start User Guide for Waler Frames
(3.86 MB)
Frames Walers Braces

Hydraulic Waler Frames: Typical Installation Methodology

Waler frames provide 2-way support to trenches and are used in conjunction with trench sheeting. Each unit comprises 2 No. aluminium or steel rails strutted apart by two hydraulic cylinders. The latter are available in a range of different sizes depending on the trench width. This sequence explains the method for installing a Hydraulic Waler System, complete with optional End Bearers within a trench.

Enquire Now

Related Products

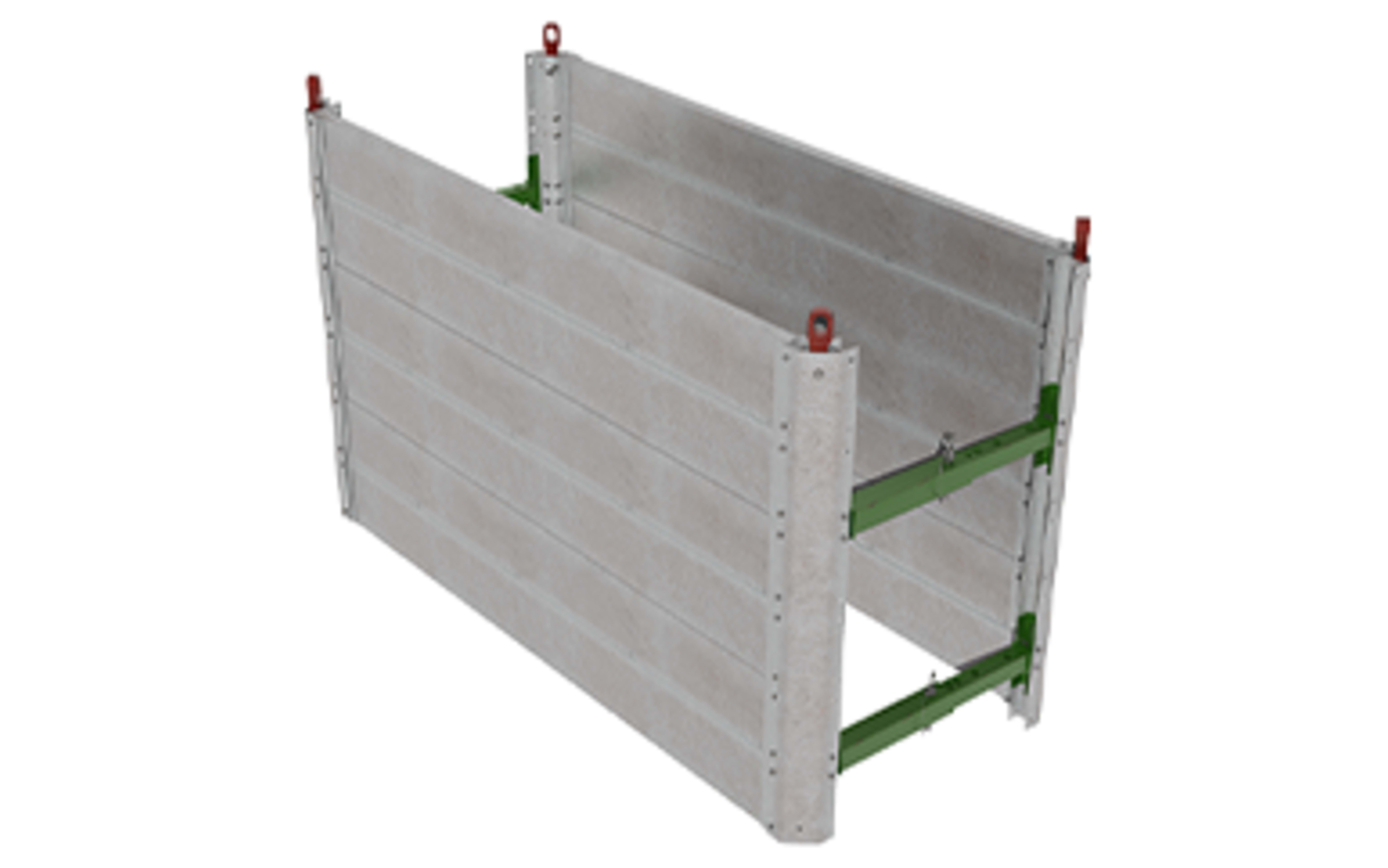

Modular Aluminium Panel Box (MAP Box)

Modular Aluminium Panel Box (MAP Box)

The MAP Box is a lightweight modular box system that can be assembled by hand and handled by a 180 degree rubber tyred excavator. Using just three main components: panels, struts and corner posts, the system provides great versatility by allowing 2, 3, and 4 sided support as the job demands. Box weights start as low as 240kg for 2- sided configurations. The portability and ease of handling make the system ideal for emergency uses where rapid response and limited working space rule out heavier equipment.

Quick Access Box

Quick Access Box

The Quick Access Box is a small, light aluminium box developed to assist in minor works, emergency situations and general repairs to utility apparatus or similar. Each component is light enough to be handled manually and small enough to be transported in a van. Box weights start as low as 70kg.

Vertical Shores

Vertical Shores

The Vertishore is a lightweight, compact shoring unit designed for short-term trench support in stable ground conditions which do not require close sheeting. The unit is easily installed from ground level by one man in a matter of seconds and provides safe, effective shoring without operatives having to enter an un-shored excavation. If required, optional EKOply Backing Boards can be supplied to aid retention of loose or granular material between vertical supports.

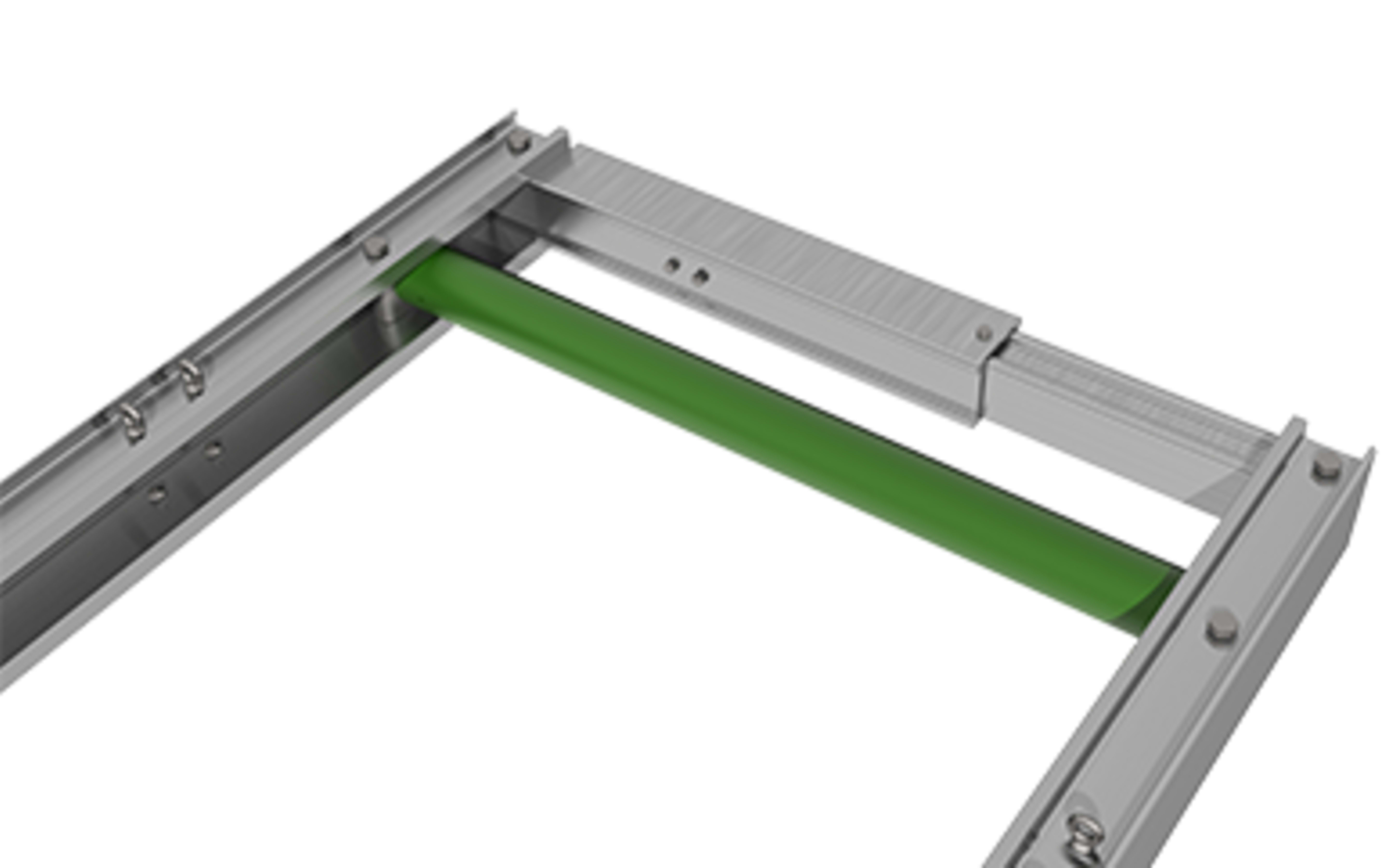

Waler End Bearers
