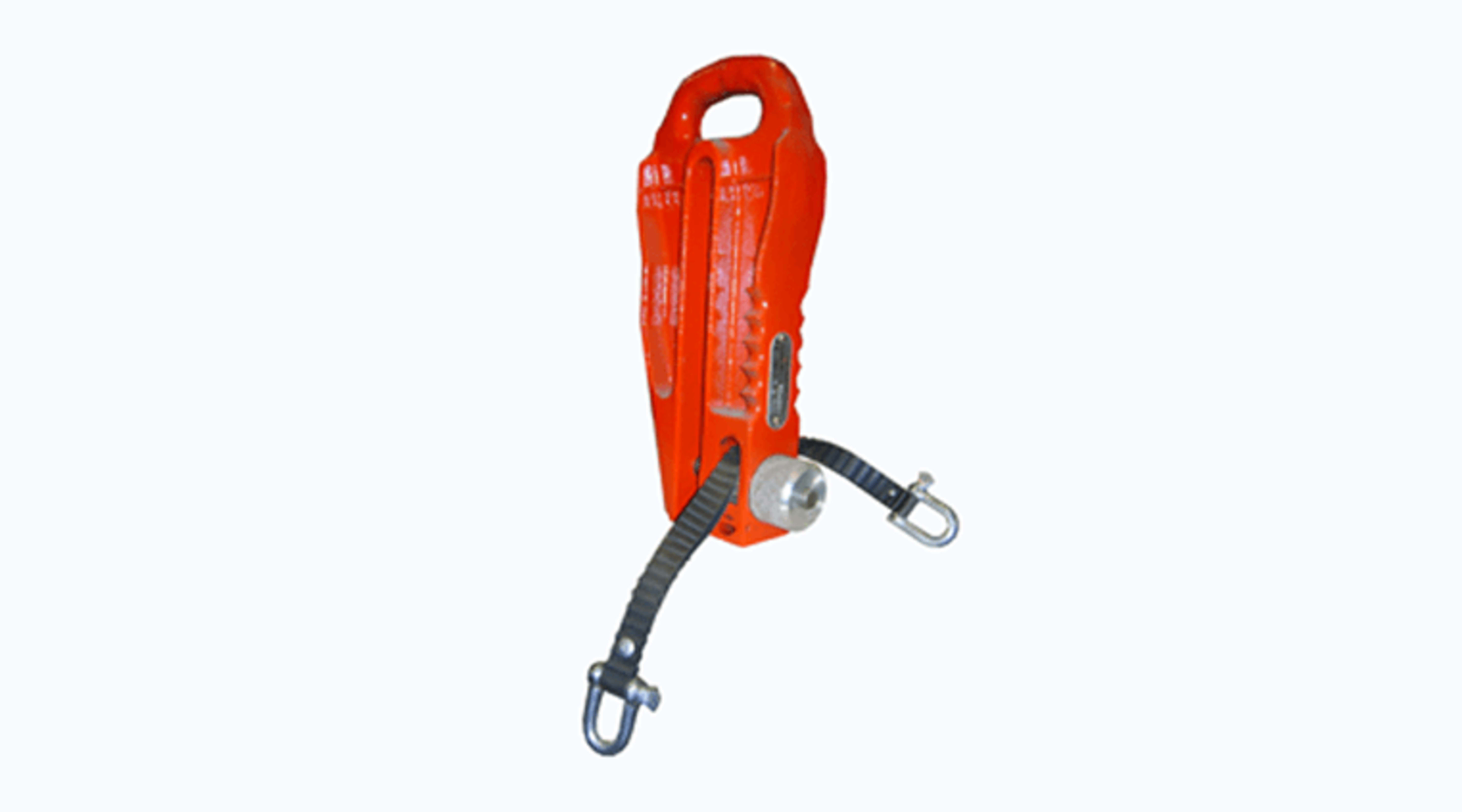

Ratchet Release Shackle

Select Product Size

Please select

A Ratchet Release Shackle is a piece of ancillary equipment which is specifically designed as a piling shackle for pitching trench sheets and piles using appropriate lifting equipment. This is a ground release shackle which enables sheet piles to be lifted vertically into temporary guides and then safely released from ground level once the sheet or pile is secured. Ground release shackle suppliers emphasise that to uphold the safe use of shackles, they must not be used for pile extraction.

Simple ratchet release mechanism operated with a rope connection to the lock handle
Ground release system promoting safety in the use of shackles
High strength cast steel body
The release shackle is designed to allow maximum engagement in the shackle throat
